Optics Calculations
Optics positions and resolution levels for for different TXM energies and Fresnel Zone Plates (FZP) can be calculated with using the following spreadsheet:
xlsx spreadsheet for the new camera system by Sam.

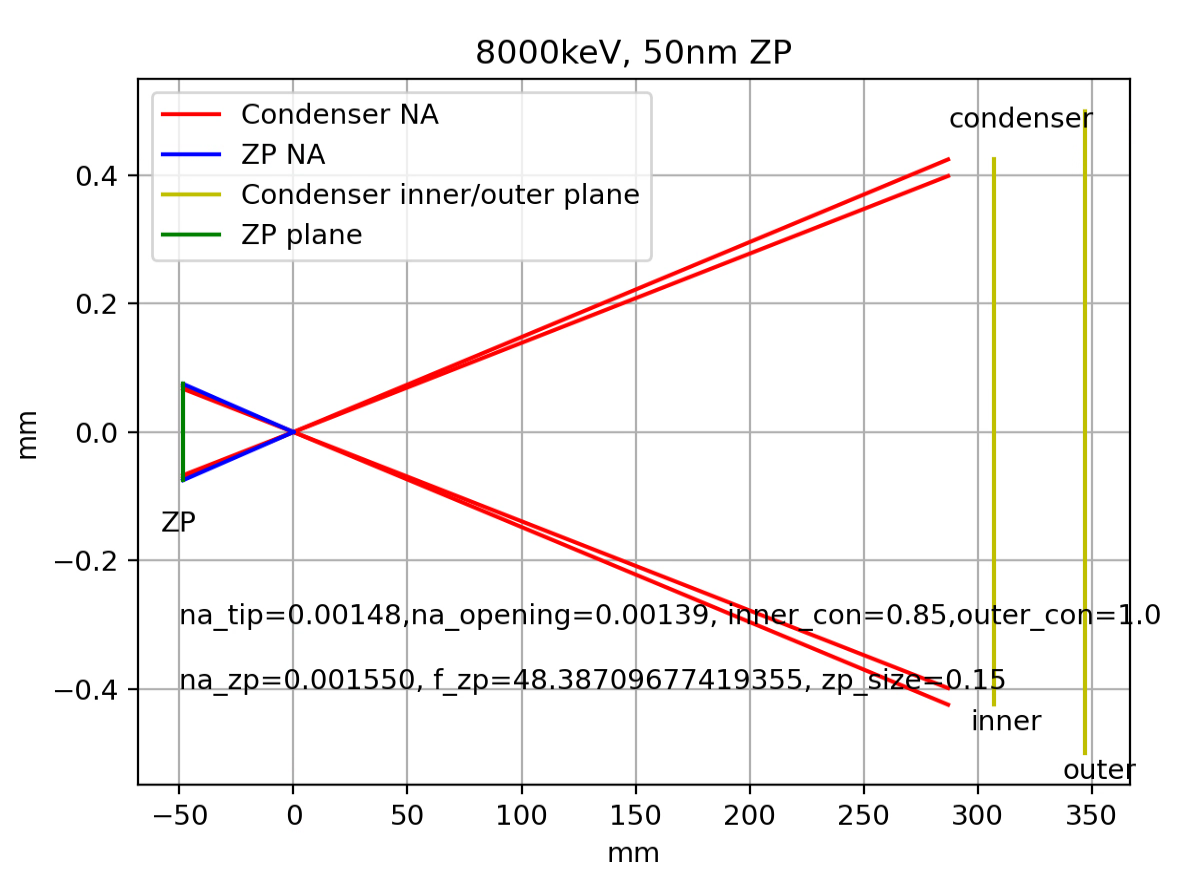

Zone plate illumination can be modelled with https://github.com/nikitinvv/txm_optics
