About

32-ID supports three main techniques: monochromatic full-field imaging, white beam (High Speed), full-field imaging/diffraction (HSID), and transmission x-ray microscopy (TXM).

Supported Techniques

• Phase contrast imaging

• Radiography

• Transmission x-ray microscopy

• Tomography

• Holotomography (in future)

Beamline Specifications

Source (downstream) | Planar 1.35
Source (upstream) | Planar 2.8
Configuration	Canted
Monochromator Type	Si(111)
Energy Range	7-40 keV
Flux (photons/sec)	\(1\times 10^{13} @13\) keV
Beam Size (HxV)	1mm x 2mm (Unfocused)

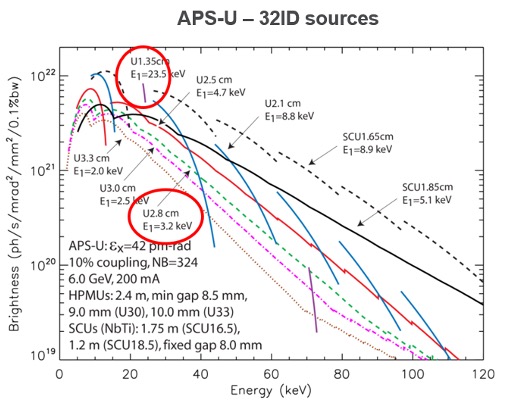

32ID Undulators spectra.

BL Coordinate System

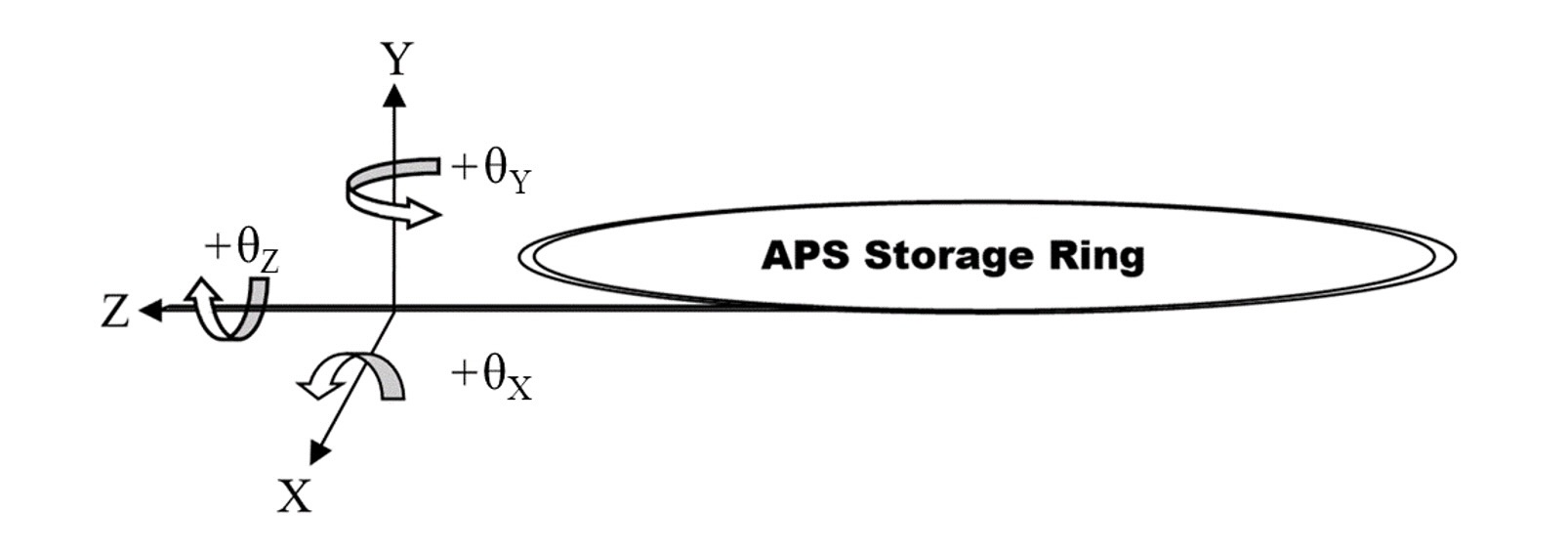

APS coordinate system.
