The in-house Transmission X-ray Microscope of APS for in situ nano-tomography

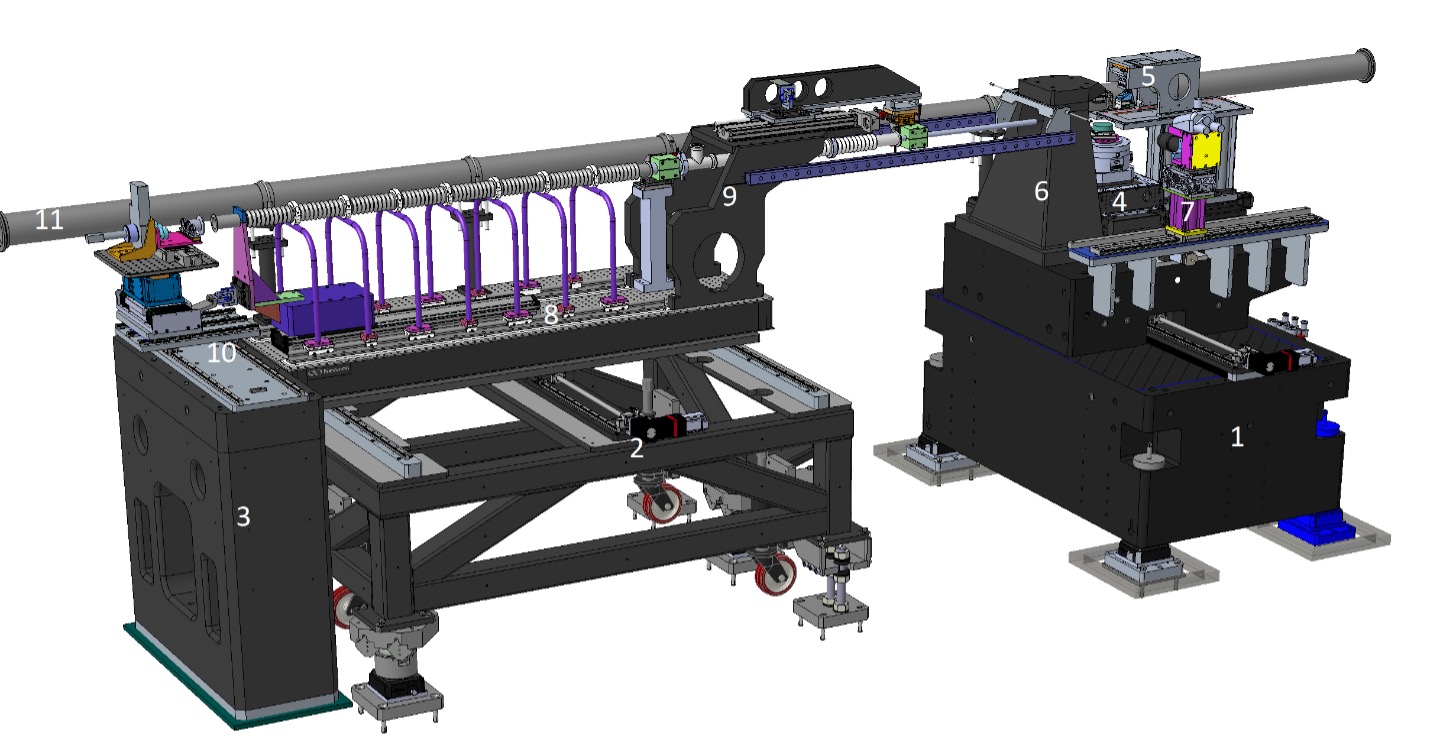

Instrument design
Label |
Component |
|---|---|
1 |
TXM sample and optic granite stage support |
2 |
Flight path weldment support |
3 |
Detector granite support |
4 |
TXM sample system |
5 |
TXM optics |
6 |
TXM zone plate and phase ring assembly |
7 |
Optical microscope for alignment |
8 |
Flight path breadboard and mechanics |
9 |
Flight path cantilever to create duck under |
10 |
Detector stack and follower mechanics |
11 |
Bypass instrument flight tube |
